maritime institute.
Following a thorough urban analysis, a project proposal arose to enhance the marine area in Dbayeh, Lebanon. This visionary project involved the creation of a dynamic longitudinal elevated urban park that seamlessly connected a bustling city center to the project site by the water. Upon examining the surrounding amenities and conducting a demographic study, it became clear that there was a discernible need for an educational institution and more green spaces in the region.
Consequently, the innovative decision was made to establish a Maritime Institute as the centerpiece of the development, complemented by an inviting public park atop the building. Incorporating sustainability at its core, the project embraced a study of wave kinetic renewable energy solutions to power its operations, showcasing a commitment to eco-friendly practices and forward-thinking design principles.
-
![]()
imagine it

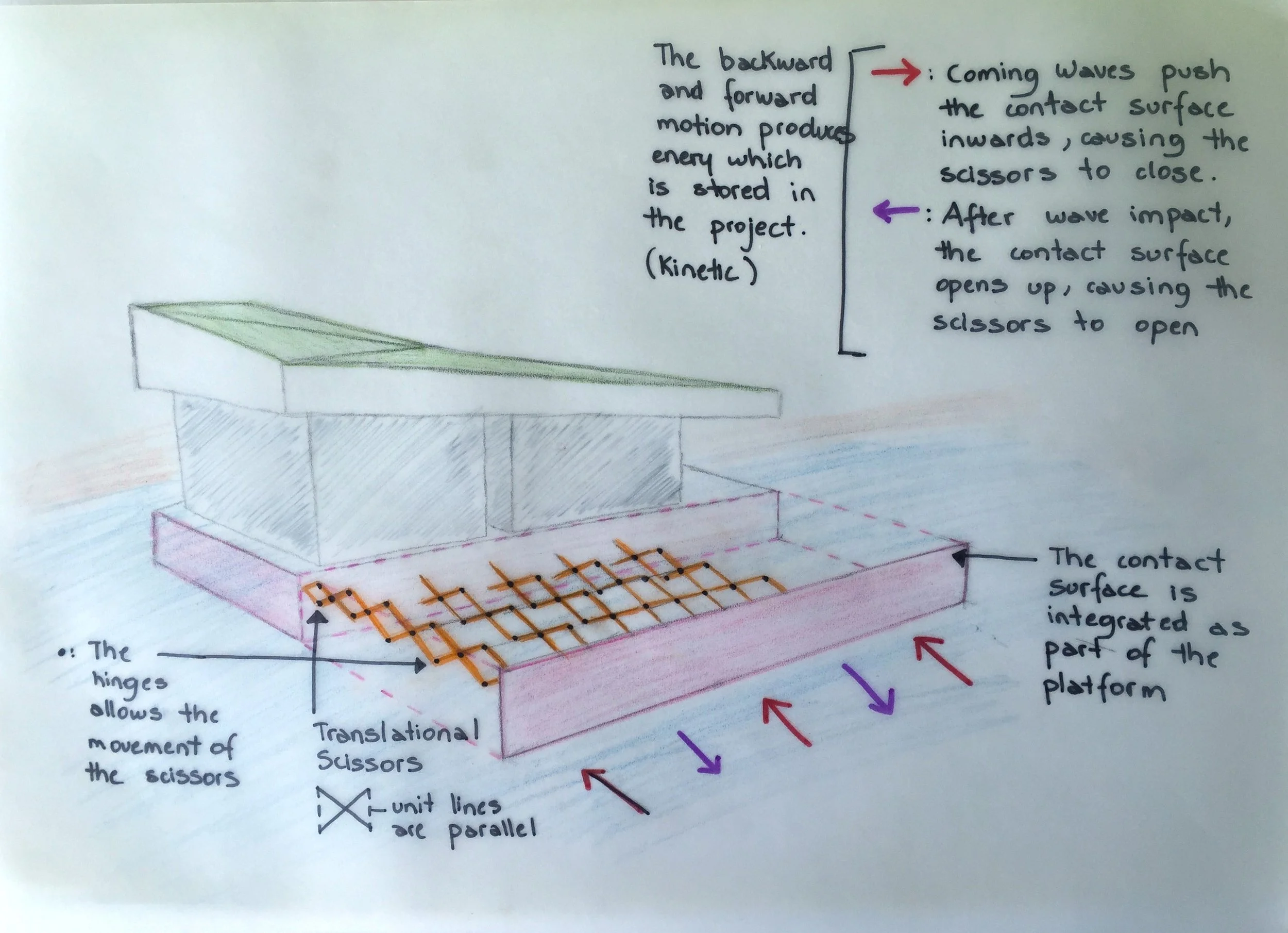

An movable integrated contact surface is seamlessly incorporated within the building, harnessing wave motion to generate energy.
-
![]()
try it

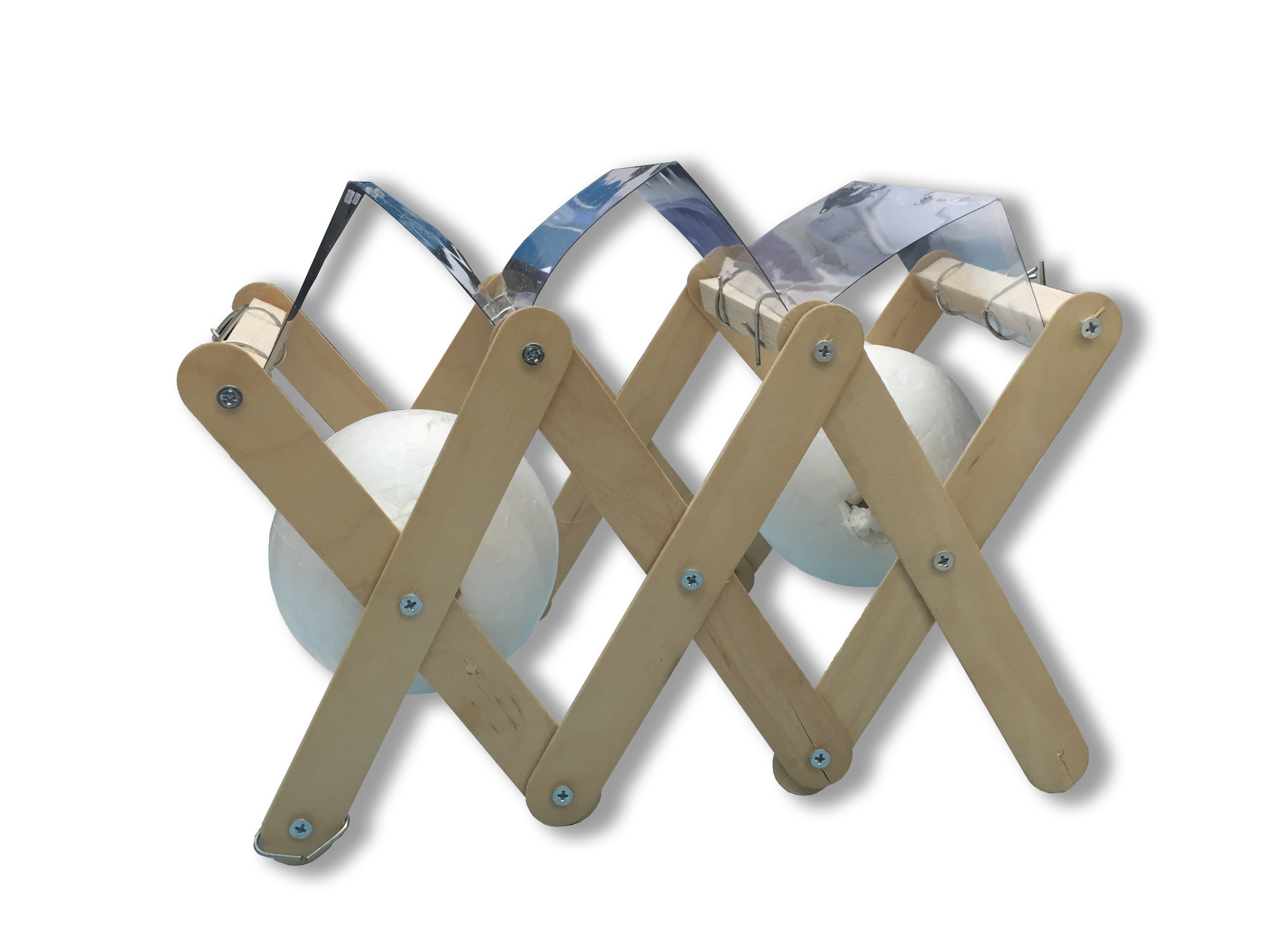

Conducting model trials of kinetic energy systems enables testing in water to simulate real-life scenarios.
-
![]()
protect it

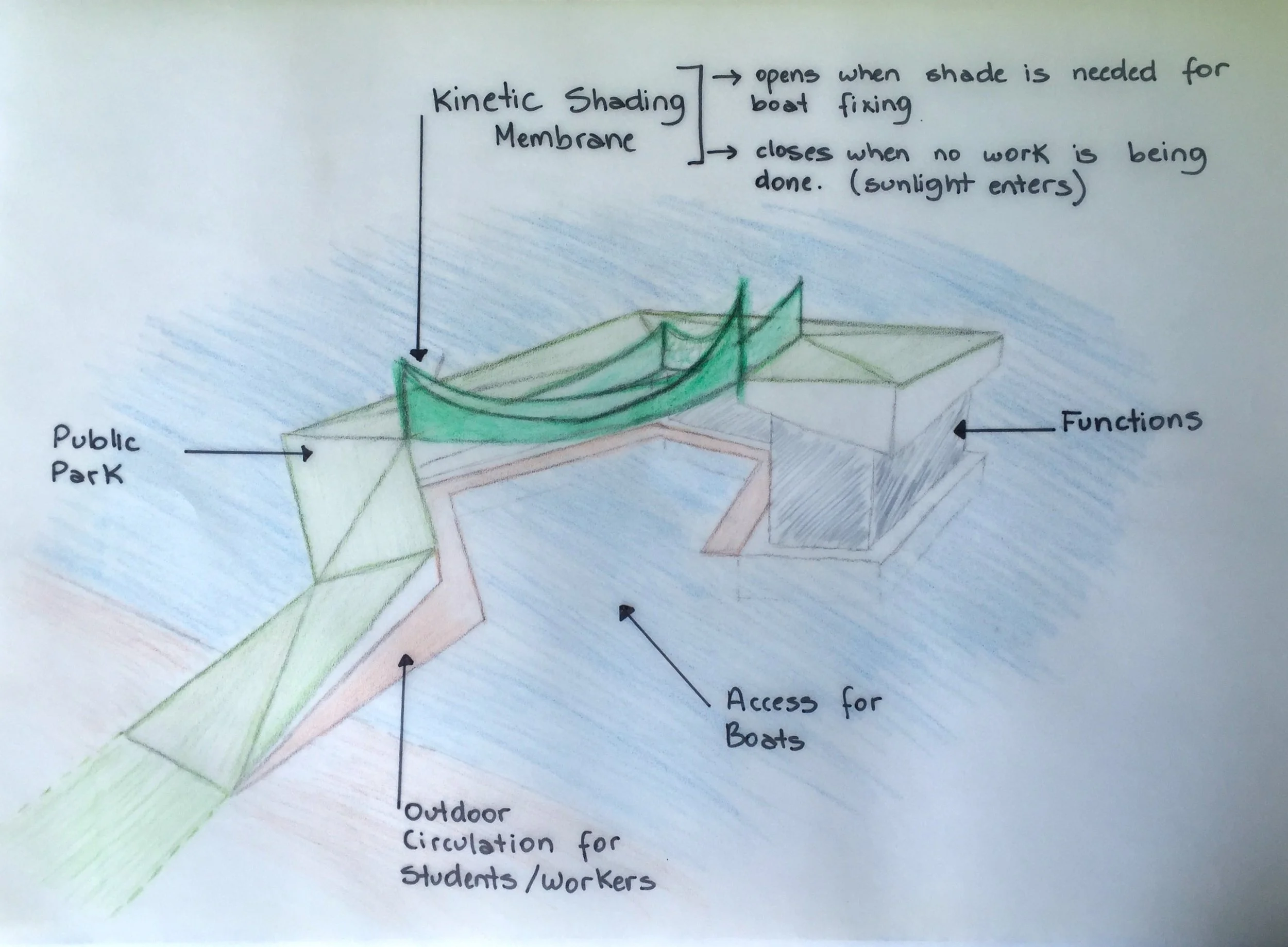

A dynamic shading membrane is installed in the courtyard to regulate sun exposure and provide protection from rain.
-
![]()
improve it

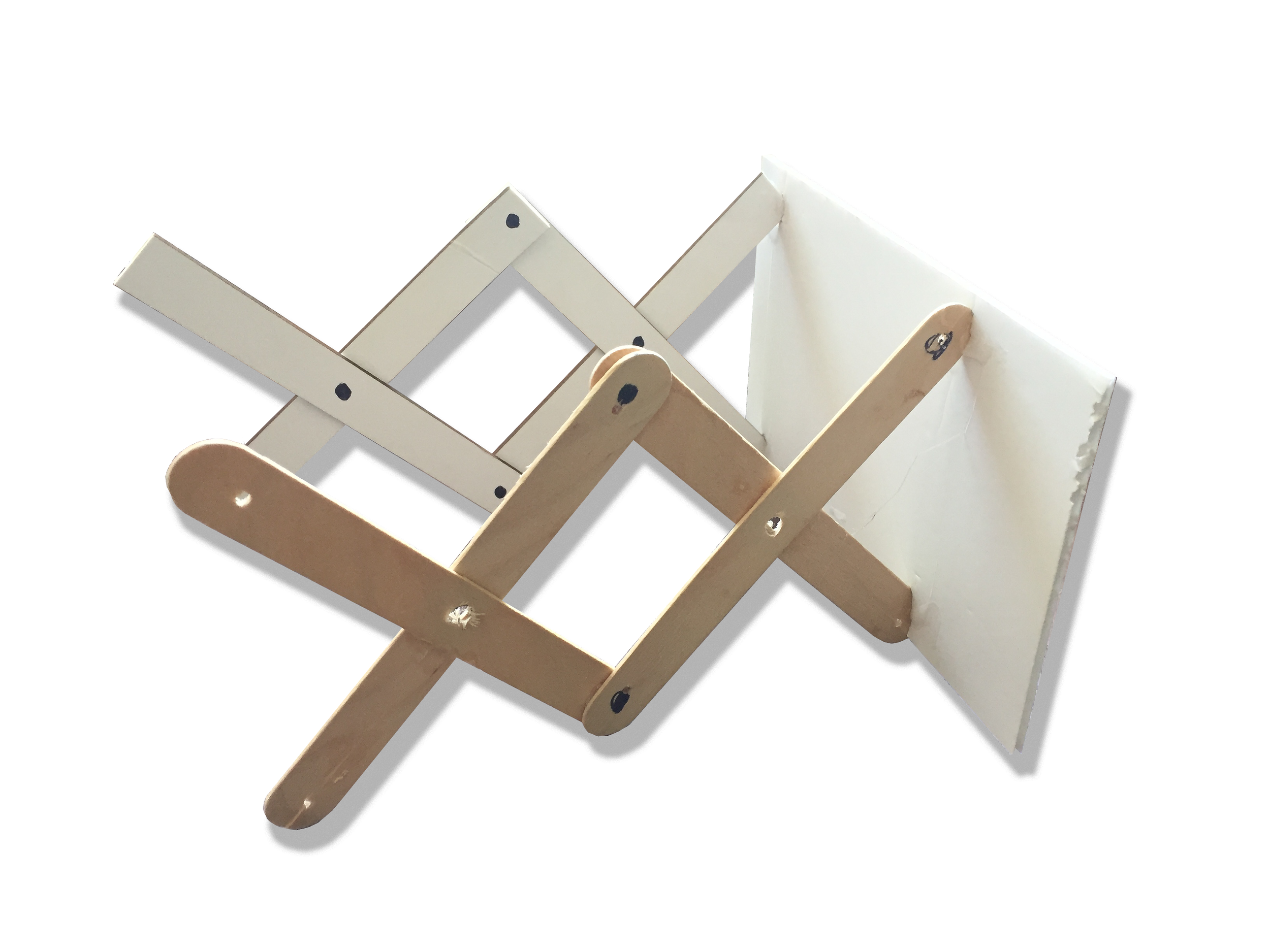

Enhancing the model and flotation devices enables improved and more seamless control of joints and the mechanical system.
-
![]()
support it

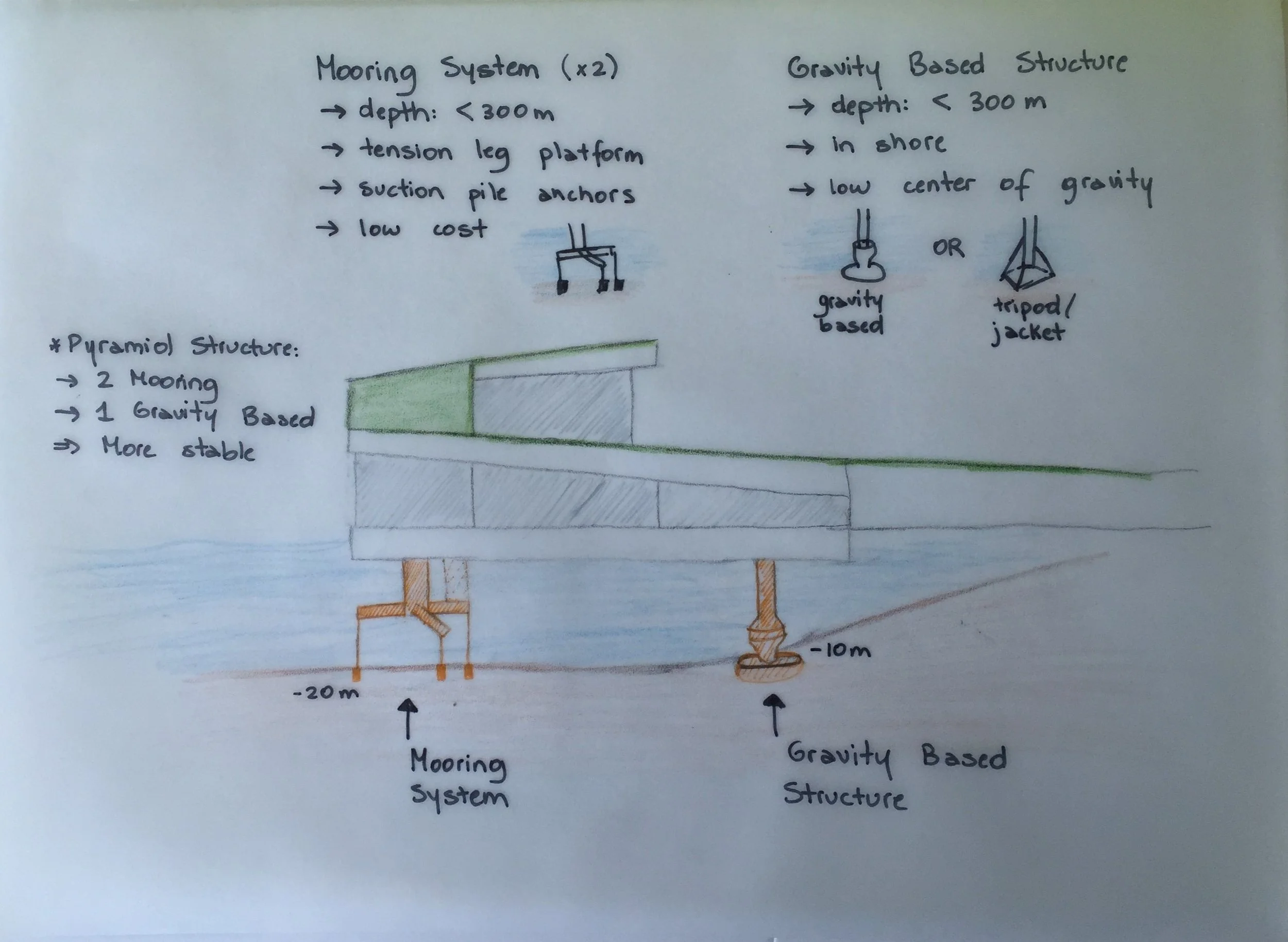

A pyramid mooring system is implemented to provide structural support for the building.
The building's shape and design were thoughtfully inspired by the surrounding built areas, creating a harmonious extension. Additionally, it offers a covered courtyard area that serves as a boat docking spot, fostering an exposed visual connection between all rooms and functions of the project.
The project features inviting classrooms, a cozy canteen complete with an outdoor seating area, a well-equipped workshop, and a spacious auditorium. An outdoor covered circulation area ensures a smooth and unrestricted flow throughout the project, creating a welcoming environment for all.
